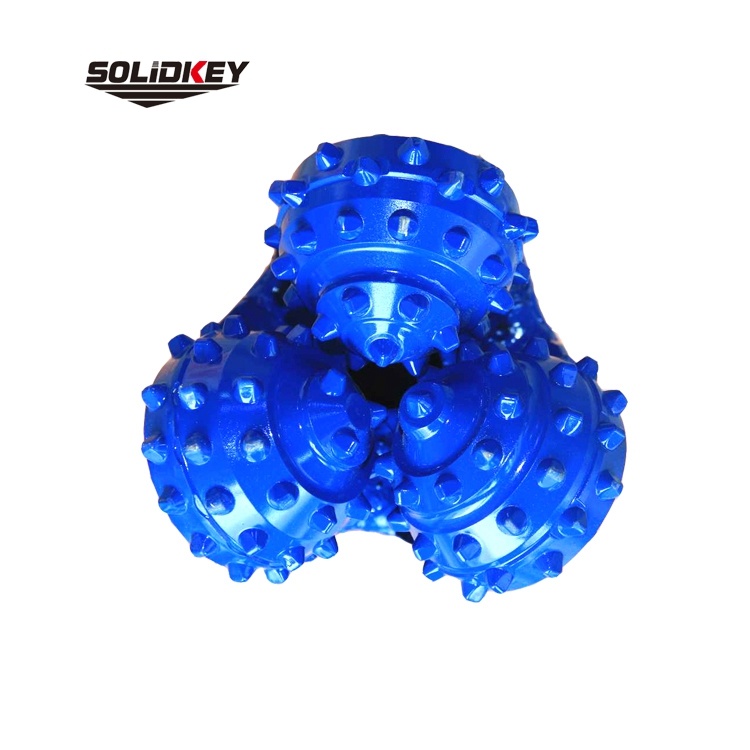

6 1/2"(165.1mm) IADC537 Tungsten Carbide Insert Tricone Drill Bits

Summary information
6 1/2 inches TCI Tricone Bit
Affiliate classification
没有此类产品
Description

API Certified factory of Tricone Bits and PDC bits
API is American Petroleum Institute, it is Authoritative in the world.
All products are produced in lines of API specifications.

API License Photo
SOLIDKEY Tricone Bits


Specifications                  IADC537G

Diameter  6 1/2"(165.1mm)
Bearing Type  Elastomer sealed bearing
Tooth Type  TCI(Tungsten Carbide Inserts)
Circulation Type  Mud fluid
Thread Connection  3 1/2 reg pin
Gauge Protection  Available
Shirttail Protection  Available
Operating Parameters

RPM(r/min) 120-50
WOB(KN) 74-165
Formations Medium formations,such as medium shale, limestone, medium sandstone, medium formation with harder and abrasive interbeds,etc.



Solidkey is a professional TCI tricone bits factory , we produce in lines of API standard , both the materials and machining processes are guaranteed.

Solidkey has rich Referenced Letters from customers of many countries in worldwide which supports us participate tenders and bring confidence to clients.

The rotary drill bits is working with rotary drill stem and mud pump, drilling stem makes pressure and rotation on rotary drilling bits, mud pump circulate mud to bring rock chips to ground.

The best solutions will be provided according to drilling depth, rock hardness, buget, etc.



Regular Models

8 1/2"(215.9mm) IADC537G 8 1/2"(215.9mm) IADC637G 12 1/4"(311.1mm) IADC537G
12 1/4"(311.1mm) IADC637G 9 7/8"(250.8mm) IADC617G 9 7/8"(250.8mm) IADC637G
14 3/4"(374.7mm) IADC537G 16"(406.4mm) IADC517G 17 1/2"(444.5mm) IADC537G
7 7/8"(200.0mm) IADC637G 9 7/8"(250.8mm) IADC537G 10 5/8"(269.8mm) IADC537G
4 1/2"(114.3mm) IADC537G 6 1/2"(165.1mm) IADC637G 17 1/2"(444.5mm) IADC637G
4 5/8"(117.4mm) IADC216G 9 7/8"(250.8mm) IADC127G 12 1/4"(311.1mm) IADC137G
6"(152.4mm) PDC Bit 12 1/4"(311.1mm) PDC Bit Bi Center Bit
24" Hole Opener 36" Hole Opener 44" Hole Opener
14" PDC Reamer 18" PDC Reamer HDD PDC Reamer
Tricone Bit Thirds Block Roller Bits Block Roller Bits
Roller Cone Bits for Piling Replaceable Roller Cone Bits Core Barrel


Applications

Oil/Gas Well Drilling-Water Well Drilling-HDD(Trenchless)-Foundation Piling

Our Mission:
Lower the cost of Drilling-Per-Meter.

Who we are:
To exploit energy resources underground.
To exploit water underground.
To install pipelines underground with No-Dig.
To pile foundation for constructions.
We are one of the people who makes above easier.
Let’s work together and enjoy this job.
