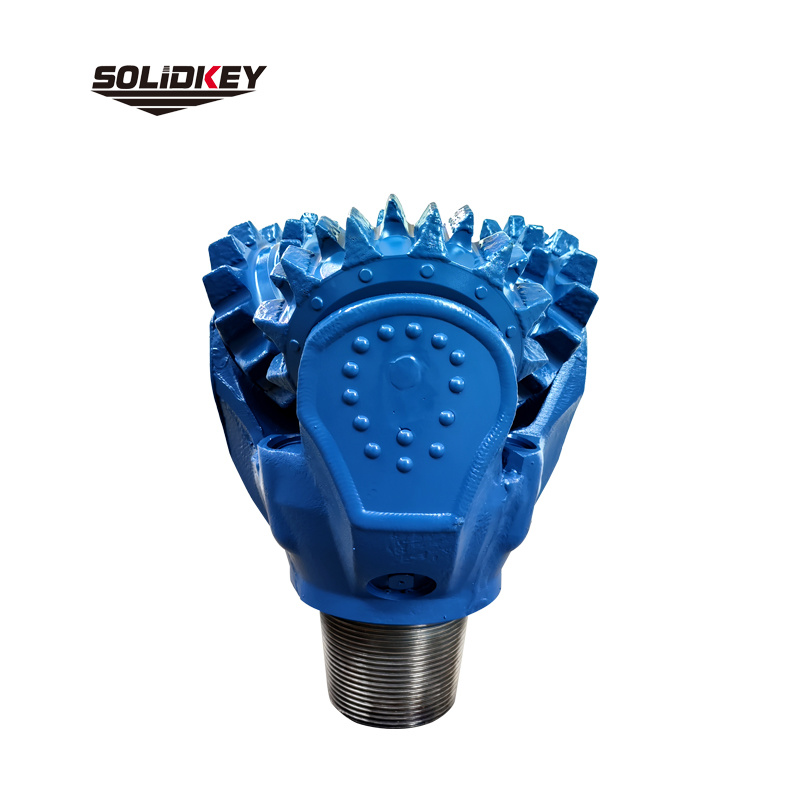

17 1/2"(444.5mm) Steel Tooth Tricone Bit For Soft Formation Drilling
NAME

17 1/2"(444.5mm) Steel Tooth Tricone Bit For Soft Formation Drilling

Summary information
17 1/2'' IADC 217 Milled Tooth Tricone Bit
Affiliate classification
没有此类产品
Description

API Certified factory of Tricone Bits and PDC bits
API is American Petroleum Institute, it is Authoritative in the world.
All products are produced in lines of API specifications.

API License Photo
SOLIDKEY Tricone Bits


Specifications                     IADC217G

Diameter  17 1/2"(444.5mm)
Bearing Type  Elastomer sealed bearing
Tooth Type  Steel Tooth/Milled Tooth
Circulation Type  Mud fluid
Thread Connection  7 5/8 reg pin
Gauge Protection  Available
Shirttail Protection  Available
Operating Parameters

RPM(r/min) 150-60
WOB(KN) 156-423
Formations Medium formations with high compressive strength, such as medium-soft shale, hard gypsum, medium-soft limestone, medium-soft sandstone, soft formation with harder interbeds, etc.

Steel tooth tricone bits are also named milled tooth tricone bit, "steel" means the teeth material is steel, actually it is a type of special steels 15MnNi4Mo and the surface of steel material is hard faced by Tungsten Carbide to increase wear resistance.

Milled means the teeth is machined by milling machine, so steel tooth tricone bits have another names "mill tooth tricone bits" or "milled tooth tricone bits".

17 1/2 inches is always diameter of the first hole in deep well drilling, the formations are always soft in shallow section, so 17 1/2" is widely used in worldwide.



Regular Models

8 1/2"(215.9mm) IADC537G 8 1/2"(215.9mm) IADC637G 12 1/4"(311.1mm) IADC537G
12 1/4"(311.1mm) IADC637G 9 7/8"(250.8mm) IADC617G 9 7/8"(250.8mm) IADC637G
14 3/4"(374.7mm) IADC537G 16"(406.4mm) IADC517G 17 1/2"(444.5mm) IADC537G
7 7/8"(200.0mm) IADC637G 9 7/8"(250.8mm) IADC537G 10 5/8"(269.8mm) IADC537G
4 1/2"(114.3mm) IADC537G 6 1/2"(165.1mm) IADC637G 17 1/2"(444.5mm) IADC637G
4 5/8"(117.4mm) IADC216G 9 7/8"(250.8mm) IADC127G 12 1/4"(311.1mm) IADC137G
6"(152.4mm) PDC Bit 12 1/4"(311.1mm) PDC Bit Bi Center Bit
24" Hole Opener 36" Hole Opener 44" Hole Opener
14" PDC Reamer 18" PDC Reamer HDD PDC Reamer
Tricone Bit Thirds Block Roller Bits Block Roller Bits
Roller Cone Bits for Piling Replaceable Roller Cone Bits Core Barrel


Applications

Oil/Gas Well Drilling-Water Well Drilling-HDD(Trenchless)-Foundation Piling

Our Mission:
Lower the cost of Drilling-Per-Meter.

Who we are:
To exploit energy resources underground.
To exploit water underground.
To install pipelines underground with No-Dig.
To pile foundation for constructions.
We are one of the people who makes above easier.
Let’s work together and enjoy this job.
