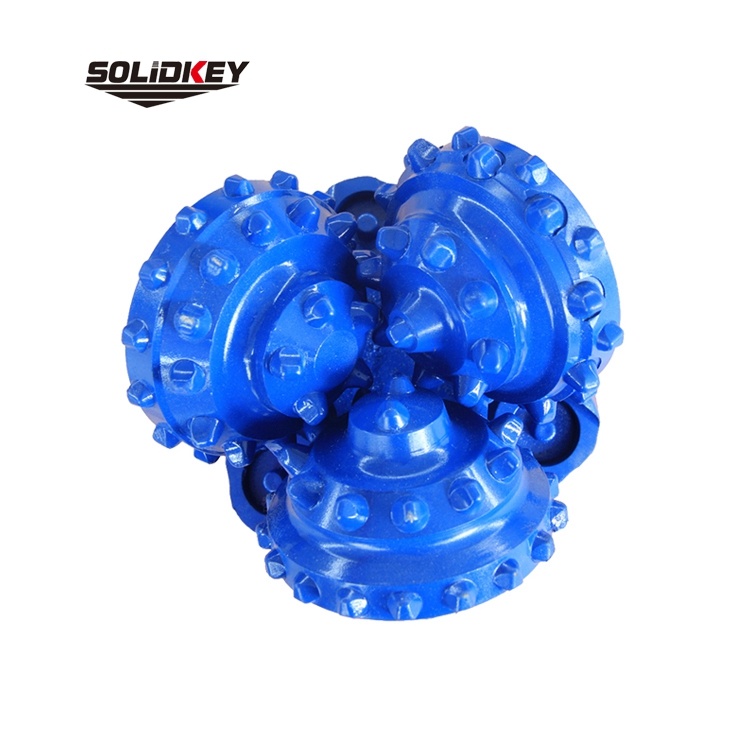

6"(152.4mm) IADC517 Three Cone Bits for Deep Well Drilling

6 inches TCI Tricone Bit

keyword:

button bit cone drill bit well drilling bit 152mm TCI tricone bit for sandstone pilot bit for hdd cone bit

Classification:

Email:

Introduce

Specifications

Diameter	16"(152.4mm)
Bearing Type	Elastomer sealed bearing
Tooth Type	TCI(Tungsten Carbide Inserts)
Circulation Type	Mud fluid
Thread Connection	3 1/2 reg pin
Gauge Protection	Available
Shirttail Protection	Available

Operating Parameters

RPM(r/min)

140-60

WOB(KN)

53-152

Formations

Soft to medium formation with low compressive strength, such as mudstone, gypsum, salt, soft limestone, etc.

1>6"(152.4mm) is a regular size in deep well drilling like oil and gas well drilling, and it is also a regular size in horizontal directional pilot hole drilling.

2>We have two types of tricone bit according to grades of bearing , one is Elastomer sealed bearing with normal quality and price, another is Metal-face sealed bearing with higher performance and price.

3>For very deep well drilling, we recommend Metal-face sealed bearing tricone bits in drilling depth exceeds 1000 meters, for hard rock and long distance trenchless pilot hole drilling that length exceeds 300 meters we also recommend metal-face sealed bearing tricone bits.

4>For water well drilling, shallow well drilling or shorter distance trenchless pilot hole drilling projects, elastomer(rubber) sealed bearing tricone bits has better cost performance.
