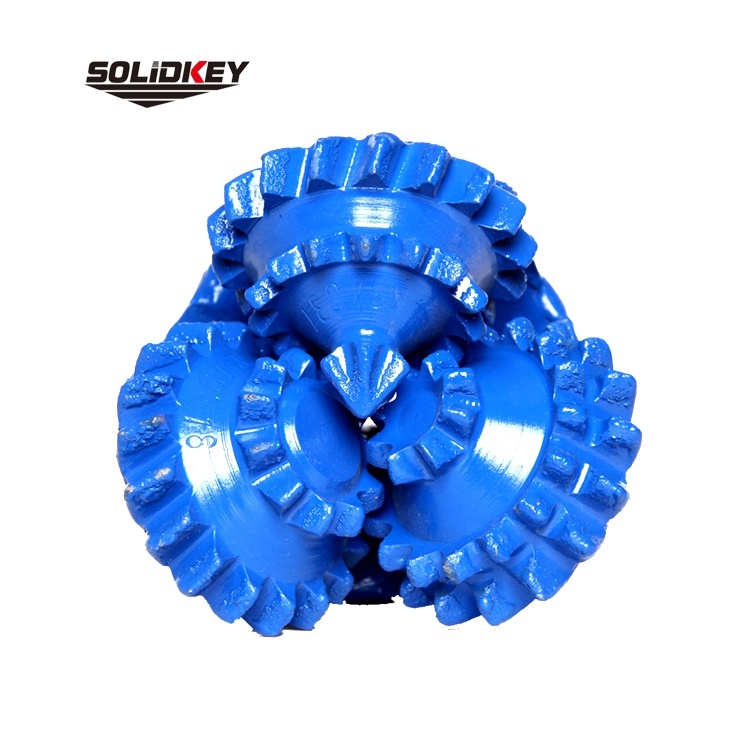

4 5/8"IADC216 Milled Tooth Tricone Bit
NAME

4 5/8"IADC216 Milled Tooth Tricone Bit

Summary information
4 5/8"IADC216 Milled Tooth Tricone Bit
Affiliate classification
Mill Tooth Tricone Bit
share：facebook twitter linkedin
没有此类产品
Description

API Certified factory of Tricone Bits and PDC bits
API is American Petroleum Institute, it is Authoritative in the world.
All products are produced in lines of API specifications.
API License Photo
SOLIDKEY Tricone Bits


Specifications                      IADC216G

Diameter  4 5/8"(177.5mm)
Bearing Type  Elastomer sealed bearing
Tooth Type  Steel Tooth/Milled Tooth
Circulation Type  Mud fluid
Thread Connection  2 7/8 reg pin
Gauge Protection  Available
Shirttail Protection  Available
Operating Parameters

RPM(r/min) 150-60
WOB(KN) 41-112
Formations

Medium formations with high compressive strength, such as medium-soft shale, hard gypsum, medium-soft limestone, medium-soft sandstone, soft formation with harder interbeds, etc.






Regular Models

TCI Roller TCI Roller TCI Roller
8 1/2"(215.9mm) IADC537G 8 1/2"(215.9mm) IADC637G 12 1/4"(311.1mm) IADC537G
TCI Roller TCI Roller TCI Roller
9 7/8"(250.8mm) IADC637G 9 7/8"(250.8mm) IADC617G 12 1/4"(311.1mm) IADC637G

TCI Roller		 TCI Roller TCI Roller
17 1/2" (444.5mm) IADC537G 17 1/2"(444.5mm) IADC637G 16"(406.4mm) IADC517G
TCI Roller
 		 TCI Roller TCI Roller
14 3/4"(374.7mm) IADC537G 10 5/8"(269.8mm) IADC537G 9 7/8"(250.8mm) IADC537G
TCI Roller TCI Roller TCI Roller
7 7/8"(200.0mm) IADC537G 6 1/2"(165.1mm) IADC637G 4 1/2"(114.3mm) IADC537G
TCI Roller TCI Roller TCI Roller
12 1/4"(311.1mm) IADC137G 9 7/8"(250.8mm) IADC127G 4 5/8"(117.4mm) IADC216G
TCI Roller TCI Roller TCI Roller
12 1/4"(311.1mm) PDC Bit 6"(152.4mm) PDC Bit Bi Center Bit
TCI Roller TCI Roller TCI Roller
44" Hole Opener 36" Hole Opener 24" Hole Opener
TCI Roller TCI Roller TCI Roller
HDD PDC Reamer 18" PDC Reamer 14" PDC Reamer
TCI Roller TCI Roller TCI Roller
Tricone Bit Thirds Block Roller Bits Block Roller Bits
TCI Roller TCI Roller TCI Roller
Roller Cone Bits for Piling Replaceable Roller Cone Bits Core Barrel


Applications

Oil/Gas Well Drilling-Water Well Drilling-HDD(Trenchless)-Foundation Piling

Our Mission:
Lower the cost of Drilling-Per-Meter.

Who we are:
To exploit energy resources underground.
To exploit water underground.
To install pipelines underground with No-Dig.
To pile foundation for constructions.
We are one of the people who makes above easier.
Let’s work together and enjoy this job.
