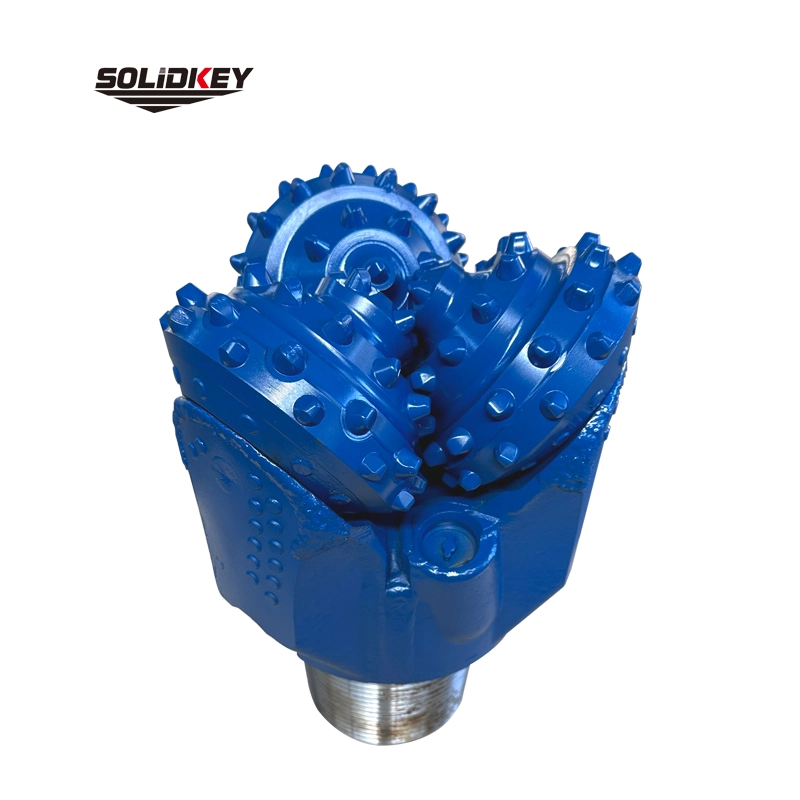

10 5/8"IADC537 TCI Tricone Bit

10 5/8 inches TCI Tricone Bit

keyword:

TCI tricone bit roller cone bit well drilling bit 269mm TCI tricone rock bit for oil and gas drill api drill bit

Classification:

Email:

Introduce

Specifications

Diameter	10 5/8"(269.8mm)
Bearing Type	Elastomer sealed bearing
Tooth Type	TCI(Tungsten Carbide Inserts)
Circulation Type	Mud fluid
Thread Connection	6 5/8 reg pin
Gauge Protection	Available
Shirttail Protection	Available

Operating Parameters

RPM(r/min)

120-50

WOB(KN)

121-269

Formations

Medium formations,such as medium shale,limestone, medium sandstone,medium formation with harder and abrasive interbeds,etc.

Regular Models


12 1/4"(311.1mm) IADC637G	17 1/2" (444.5mm) IADC537G	12 1/4"(311.1mm) IADC137G	17 1/2"(444.5mm) IADC135G

8 1/2"(215.9mm) PDC Bit	12 1/4"(311.1mm) PDC Bit	Bi Center Bit	PDC Reaming Bits

24" Hole Opener	28" Hole Opener	14" PDC Reamer	18" PDC Reamer

Tricone Bit Thirds	Replaceable Roller Cone Bits	Block Roller Bits	Core Barrel
