13 3/4 Inches IADC127 API Standard Steel Tooth Tricone Bit China Famous Factory
NAME

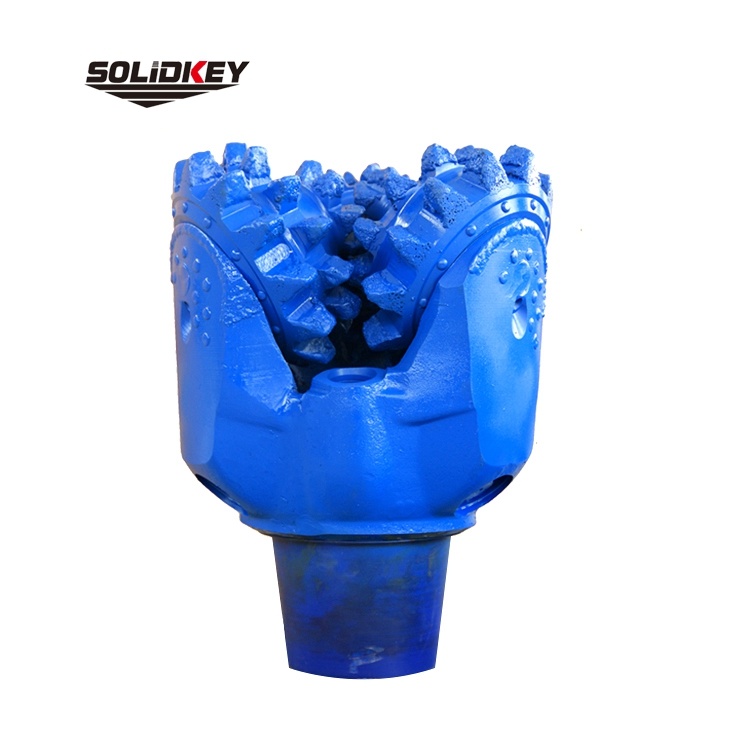

13 3/4 Inches IADC127 API Standard Steel Tooth Tricone Bit China Famous Factory

Summary information
13 3/4"IADC 127 Milled Tooth Tricone Bit
Affiliate classification
share:facebook twitter linkedin
没有此类产品
Description

API Certified factory of Tricone Bits and PDC bits
API is American Petroleum Institute, it is Authoritative in the world.
All products are produced in lines of API specifications.

API License Photo
SOLIDKEY


Specifications                IADC127

Diameter  13 3/4"(350.4mm)
Bearing Type  Elastomer sealed bearing
Tooth Type  Steel Tooth / Milled Tooth
Circulation Type  Mud fluid
Thread Connection  6 5/8 reg pin
Gauge Protection  Available
Shirttail Protection  Available
Operating Parameters

RPM(r/min) 180-60
WOB(KN) 105-249
Formations Soft formation with low compressive strength, and high drillability, such as mudstone,gypsum, salt, soft limestone, etc.

For oil well drilling or water well drilling or exploration, steel tooth tricone bit is one of the main choices for drillers to drill soft formations even soft or medium-hard rocks. Longer inserts TCI tricone bits can drill soft formations, but steel tooth tricone bits can not be instead for its higher ROP than TCI inserts bits and higher capacity to avoid bit-balling.



Solidkey serves drilling contractors, oil/gas companies, water well drillers, HDD/No-Dig/Trenchless contractors, construction piling companies, don't hesitate to contact us to learn more, we attend exhibitions in many countries worldwide, hopefully to meet with you face-to-face in near future.
